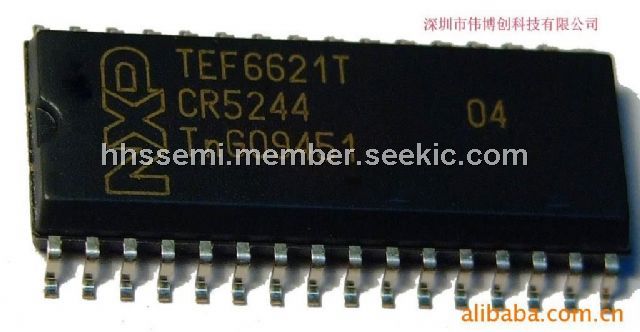

TEF6621

Product Summary

The TEF6621 is an AM/FM radio including Phase-Locked Loop (PLL) tuning system. The system is designed in such a way, that the TEF6621 can be used as a world-wide tuner covering common FM and AM bands for radio reception. All functions are controlled by the I2C-bus. Besides the basic feature set it provides a good weak signal processing function.

Parametrics

TEF6621 absolute maximum ratings: (1)VCC, supply voltage on pins VCC1and VCC2: -0.3 to +10 V; (2)ΔVCCn, voltage difference between any supply pins, between pins VCC1and VCC2: -0.3 to +0.3 V; (3)VSCL, voltage on pin SCL: -0.3 to +6 V; (4)VSDA, voltage on pin SDA: -0.3 to +6 V; (5)VAMRFDEC, voltage on pin AMRFDEC: -0.3 to +6 V; (6)VAMRFIN, voltage on pin AMRFIN: -0.3 to +6 V; (7)VAMRFAGC, voltage on pin AMRFAGC: -0.3 to +6 V; (8)VAMIFAGC2, voltage on pin AMIFAGC2: -0.3 to +6 V; (9)VRSSI RSSI, voltage: -0.3 to +6 V; (10)VVCODEC, voltage on pin VCODEC: -0.3 to +6 V; (11)VPLL, voltage on pin PLL: -0.3 to +6 V; (12)VPLLREF, voltage on pin PLLREF: -0.3 to +6 V; (13)VTEST, voltage on pin TEST: -0.3 to +6 V; (14)VAMIFAGC1, voltage on pin AMIFAGC1: -0.3 to +6 V; (15)VVREF, voltage on pin VREF: -0.3 to +6 V; (16)Vn, voltage on any other pin: -0.3 to +VCC V; (17)Tstg, storage temperature: -40 to +150℃; (18)Tamb, ambient temperature: -20 to +85℃; (19)Tj, junction temperature: 150℃; (20)Vesd, electrostatic discharge voltage, human body model: -2000 to +2000 V; machine model: -200 to +200 V.

Features

TEF6621 features: (1)FM tuner for Japan, Europe and US reception; (2)AM tuner for long wave (LW) and Medium Wave (MW) reception; (3)Integrated AM Radio Frequency (RF) selectivity; (4)Integrated PLL tuning system; controlled via I2C-bus; (5)Fully integrated Local Osicillator (LO); (6)No alignment needed; (7)Very easy application on the main board; (8)No critical RF components; (9)Fully integrated Intermediate Frequency (IF) filters and FM stereo decoder; (10)Fully integrated FM noise blanker; (11)Field strength (LEVEL), multipath and noise dependent steereo blend; (12)Field strength (LEVEL), multipath (WAN) and noise (USN) dependent High-cut control (HCC); (13)Field strength (LEVEL), multipath (WAN) and noise (USN) dependent soft mute; (14)Single power supply.

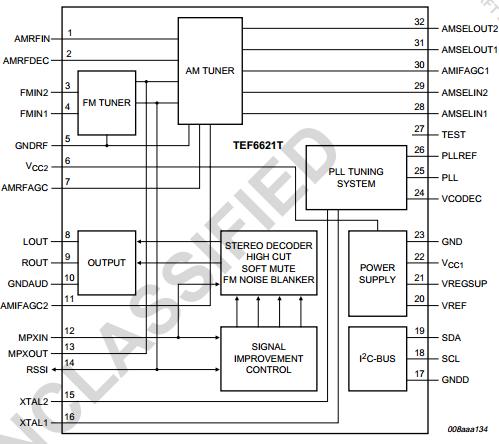

Diagrams
