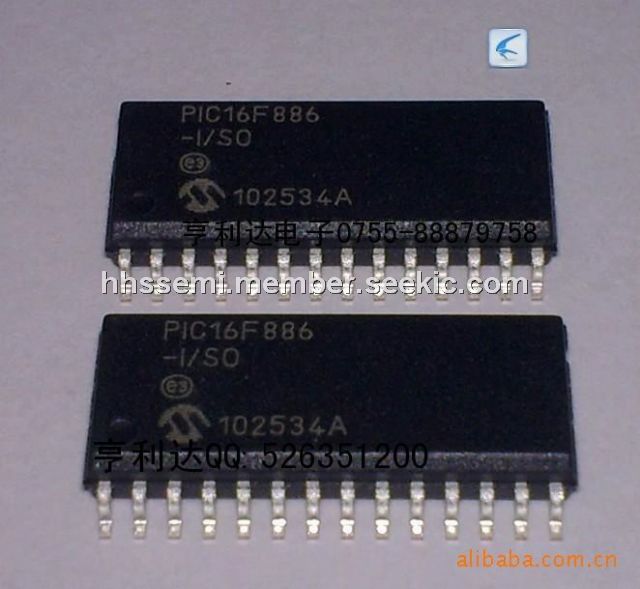

PIC16F886T-I/SO

Product Summary

The PIC16F886T-I/SO is an Enhanced Flash-Based 8-Bit CMOS Microcontroller with nanoWatt Technology. The PIC16F886T-I/SO has a wide variety of clock sources and selection features that allow it to be used in a wide range of applications while maximizing perfor-mance and minimizing power consumption. Clock sources can be configured from external oscillators, quartz crystal resonators, ceramic resonators and Resistor-Capacitor (RC) circuits. In addition, the system clock source can be configured from one of two internal oscillators, with a choice of speeds selectable via software.

Parametrics

PIC16F886T-I/SO absolute maximum ratings: (1)Ambient temperature under bias: -40℃ to +125℃; (2)Storage temperature: -65℃ to +150℃; (3)Voltage on VDDwith respect to VSS: -0.3V to +6.5V; (4)Voltage on MCLRwith respect to Vss: -0.3V to +13.5V; (5)Voltage on all other pins with respect to VSS: -0.3V to (VDD+ 0.3V); (6)Total power dissipation: 800 mW; (7)Maximum current out of VSS pin: 300 mA; (8)Maximum current into VDD pin: 250mA; (9)Input clamp current, IIK(VI< 0 or VI> VDD): ±20 mA; (10)Output clamp current, IOK(Vo < 0 or Vo >VDD): ±20 mA; (11)Maximum output current sunk by any I/O pin: 25 mA; (12)Maximum output current sourced by any I/O pin: 25 mA; (13)Maximum current sunk by PORTA, PORTB and PORTE (combined): 200 mA; (14)Maximum current sourced by PORTA, PORTB and PORTE (combined): 200 mA; (15)Maximum current sunk by PORTC and PORTD (combined): 200 mA; (16)Maximum current sourced by PORTC and PORTD (combined): 200 mA.

Features

PIC16F886T-I/SO features: (1)Only 35 instructions to learn: All single-cycle instructions except branches; (2)Operating speed: DC-20 MHz oscillator/clock input; DC-200 ns instruction cycle; (3)Interrupt capability; (4)8-level deep hardware stack; (5)Direct, Indirect and Relative Addressing modes; (6)Precision Internal Oscillator: Factory calibrated to ±1%; Software selectable frequency range of 8 MHz to 31 kHz; (7)Software tunable; (8)Two-Speed Start-up mode; (9)Crystal fail detect for critical applications; (10)Clock mode switching during operation for power savings; (11)Power-Saving Sleep mode; (12)Wide operating voltage range (2.0V-5.5V); (13)Industrial and Extended Temperature range; (14)Power-on Reset (POR); (15)Power-up Timer (PWRT) and Oscillator Start-up Timer (OST); (16)Brown-out Reset (BOR) with software control option; (17)Enhanced low-current Watchdog Timer (WDT) with on-chip oscillator (software selectable nominal 268 seconds with full prescaler) with software enable; (18)Multiplexed Master Clear with pull-up/input pin; (19)Programmable code protection; (20)High Endurance Flash/EEPROM cell: 100,000 write Flash endurance; 1,000,000 write EEPROM endurance; Flash/Data EEPROM retention: > 40 years; (21)Program memory Read/Write during run time; (22)In-Circuit Debugger (on board).

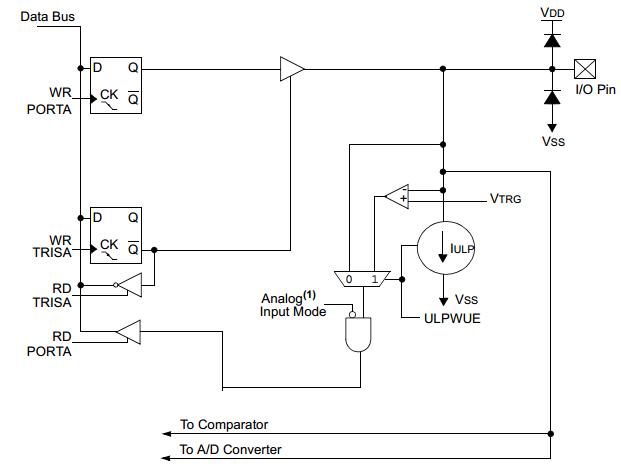

Diagrams
