Product Summary

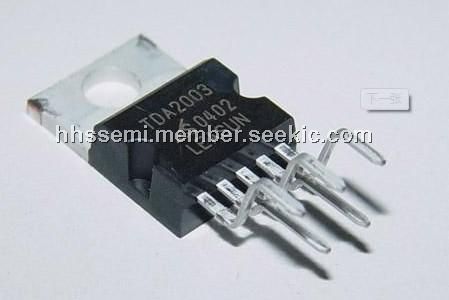

The TDA2003 is a 10W car radio audio amplifier. It has improved performance with the same pin configuration as the TDA 2002. The TDA2003 provides a high output current capability(up to 3.5A) very low harmonic and cross-over distortion. Completely safe operation of the TDA2003 is guaranteed due to protection against DC and AC short circuit between all pins and ground, thermal over-range, load dump voltage surge up to 40V and fortuitous open ground.

Parametrics

TDA2003 absolute maximum ratings: (1)Peak supply voltage (50ms): 40 V; (2)DC supply voltage: 28 V; (3)Operating supply voltage: 18 V; (4)Output peak current (repetitive): 3.5 A; (5)Output peak current (non repetitive): 4.5 A; (6)Power dissipation at Tcase = 90℃: 20W; (7)Storage and junction temeperature: -40℃ to 150℃.

Features

TDA2003 features: (1)Supply voltage:8 to 18V; (2)Quiescent output voltage (pin 4): 6.1 to 7.7V; (3)Quiescent drain current (pin 5): 44 to 50mA; (4)frequency response: 40Hz to 15000Hz; (5)input resistance: 70kΩ to 150kΩ; (6)voltage gain: 39.3dB to 40.3dB; (7)input noise voltage: 1uV to 5uV; (8)input noise current: 60pA to 200pA; (9)supply voltage rejection: 30dB to 36dB.

Diagrams

TDA2003 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TDA2003
TDA2003

Other


Data Sheet

Negotiable
TDA2003A
TDA2003A

Other


Data Sheet

Negotiable
TDA2003AH
TDA2003AH

STMicroelectronics

Audio Amplifiers 10 W car radio audio amplifier

Data Sheet

0-1: $0.76
1-10: $0.60
10-100: $0.53
100-250: $0.46
TDA2003AV
TDA2003AV

STMicroelectronics

Audio Amplifiers 10 W car radio audio amplifier

Data Sheet

0-1: $0.76
1-10: $0.67
10-100: $0.53
100-250: $0.46
TDA2003H
TDA2003H

STMicroelectronics

Audio Amplifiers 10W Car Radio Amp

Data Sheet

Negotiable
TDA2003V
TDA2003V

STMicroelectronics

Audio Amplifiers 10W Car Radio Amp

Data Sheet

Negotiable
