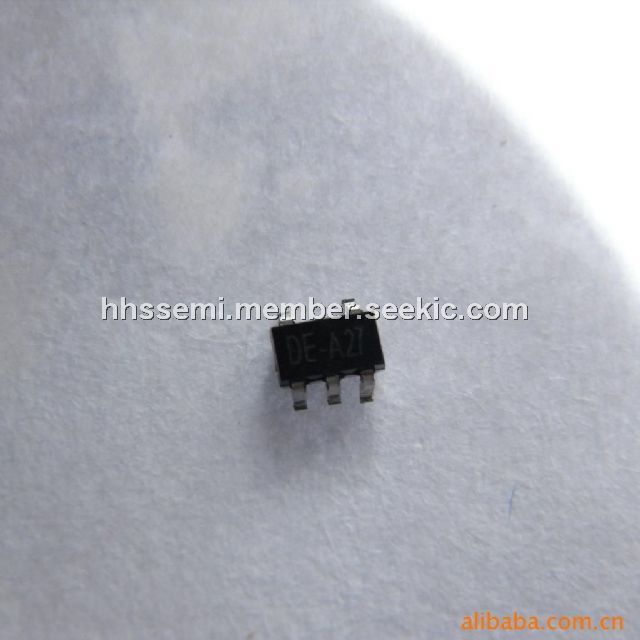

RT9193-33PB

RT9193-33PB, Ultra-Fast CMOS LDO Regulator, SOT23-5, 300mA, 6V, Richtek Technology Corporation

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.01~0.01 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.01~0.01

PartNumber:: RT9193-33PB

Brand:: Richtek Technology Corporation - richtek | Pack: SOT | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Andy's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-30

From Other Seller

Part Number:RT9193-33PB
US $0.01 - 0.01
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The RT9193-33PB is an Ultra-Low Noise, Ultra-Fast CMOS LDO Regulator. The RT9193-33PB is designed for portable RF and wireless applications with demanding performance and space requirements. The device performance is optimized for battery-powered systems to deliver ultra low noise and low quiescent current. A noise bypass pin is available for further reduction of output noise. Regulator ground current increases only slightly in dropout, further prolonging the battery life. The applications of the RT9193-33PB include CDMA/GSM Cellular Handsets, Battery-Powered Equipment, Laptop, Palmtops, Notebook Computers, Hand-Held Instruments, PCMCIA Cards, Portable Information Appliances.

Parametrics

RT9193-33PB absolute maximum ratings: (1)Supply Input Voltage: 6V; (2)Power Dissipation, PD @ TA= 25℃, SC-70-5: 300mW; SOT-23-5: 400mW; WDFN-6L2x2: 606mW; (3)Package Thermal Resistance (Note 4); (4)SOT-70-5, θJA: 333℃/W; SOT-23-5, θJA: 250℃/W; WDFN-6L 2x2, θJA: 165℃/W; (5)Junction Temperature: 150℃; (6)Lead Temperature (Soldering, 10 sec.): 260℃; (7)Storage Temperature Range: -65℃ to 150℃; (8)ESD Susceptibility, HBM (Human Body Mode): 2kV; MM (Machine Mode): 200V.

Features

RT9193-33PB features: (1)Ultra-Low-Noise for RF Application; (2)Ultra-Fast Response in Line/Load Transient; (3)Quick Start-Up (Typically 50μs); (4)< 0.01μA Standby Current When Shutdown; (5)Low Dropout : 220mV @ 300mA; (6)Wide Operating Voltage Ranges : 2.5V to 5.5V; (7)TTL-Logic-Controlled Shutdown Input; (8)Low Temperature Coefficient; (9)Current Limiting Protection; (10)Thermal Shutdown Protection; (11)Only 1μF Output Capacitor Required for Stability; (12)High Power Supply Rejection Ratio; (13)Custom Voltage Available; (14)RoHS Compliant and 100% Lead (Pb)-Free.
