Product Summary

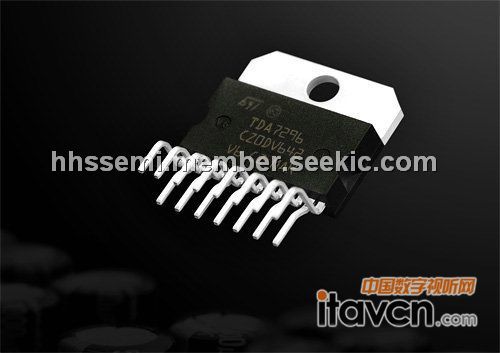

The TDA7296 is a 60W DMOS audio amplifier. It is a monolithic integrated circuit in Multiwatt15 package, intended for use as audio class AB amplifier in Hi-Fi field applications (Home Stereo, self powered loudspeakers, Topclass TV). Thanks to the wide voltage range and to the high out current capability the TDA7296 is able to supply the highest power into both 4Ω and 8Ω loads even in presence of poor supply regulation, with high Supply Voltage Rejection.
Parametrics
TDA7296 absolute maximum ratings: (1)Supply Voltage (No Signal): ±35 V; (2)Output Peak Current: 5 A; (3)Power Dissipation Tcase = 70℃: 50 W; (4)Operating Ambient Temperature Range: 0℃ to 70℃; (5)Storage and Junction Temperature: 150℃.
Features
TDA7296 features: (1)multipower bcd technology; (2)very high operating voltage range (±35V); (3)dmos power stage; (4)high output power (up to 60W music power); (5)muting/stand-by functions; (6)no switch on/off noise; (7)no boucherot cells; (8)very low distortion; (9)very low noise; (10)short circuit protection; (11)thermal shutdown.

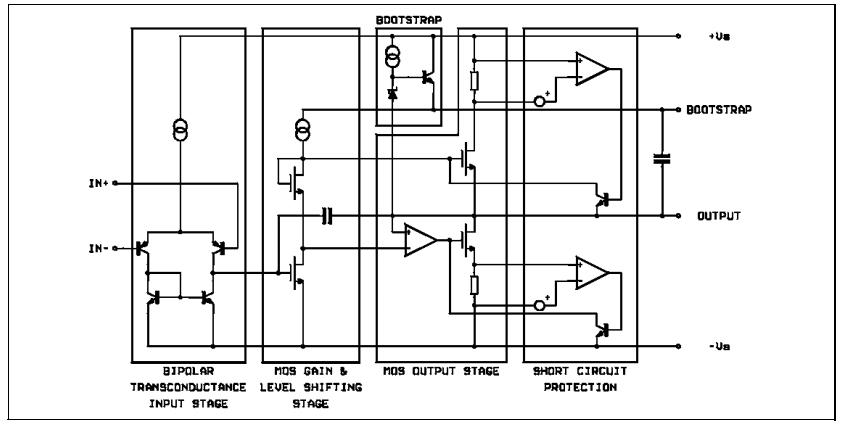

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TDA7296 |
STMicroelectronics |
Audio Amplifiers 60W Audio Amplifier |
Data Sheet |
|
|
||||||||||||
 |
TDA7296A |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
TDA7296S |
STMicroelectronics |
Audio Amplifiers 60W Audio Amplifier |
Data Sheet |
Negotiable |
|
||||||||||||
