PCA9555PW

PCA9555PW, 24-pin CMOS device, TSSOP-24, 6V, 50mA, Texas Instruments

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.01~0.02 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.01~0.02

PartNumber:: PCA9555PW

Brand:: Texas Instruments - TI | Pack: TSSOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Andy's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-06-15

From Other Seller

Part Number:PCA9555PW
US $0.01 - 0.02
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

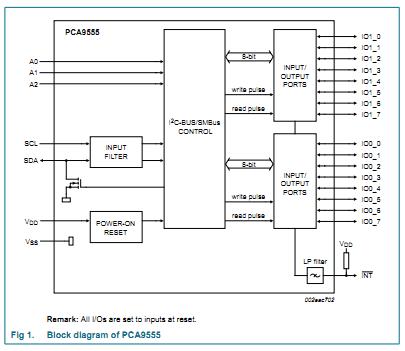

The PCA9555PW is a 24-pin CMOS device. The PCA9555PW provides 16 bits of General Purpose parallel Input/Output (GPIO) expansion for I2C-bus/SMBus applications. The PCA9555PW was developed to enhance the NXP Semiconductors family of I2C-bus I/O expanders. The improvements of the PCA9555PW include higher drive capability, 5 V I/O tolerance, lower supply current, individual I/O conguration, and smaller packaging. I/O expanders provide a simple solution when additional I/O is needed for ACPI power switches, sensors, push buttons, LEDs, fans, etc.

Parametrics

PCA9555PW absolute maximum ratings: (1)VDD, supply voltage: -0.5 to +6.0 V; (2)VI/O, voltage on an input/output pin VSS: -0.5 to 6 V; (3)IO, output current on an I/O pin: ±50 mA; (4)II, input current: ±20 mA; (5)IDD, supply current: 160 mA; (6)ISS, ground supply current: 200 mA; (7)Ptot, total power dissipation: 200 mW; (8)Tstg, storage temperature: -65 to +150℃; (9)Tamb, ambient temperature operating: -40 to +85℃.

Features

PCA9555PW features: (1)Operating power supply voltage range of 2.3 V to 5.5 V; (2)5 V tolerant I/Os; (3)Polarity Inversion register; (4)Active low interrupt output; (5)Low standby current; (6)Noise flter on SCL/SDA inputs; (7)No glitch on power-up; (8)Internal power-on reset; (9)16 I/O pins which default to 16 inputs; (10)0 Hz to 400 kHz clock frequency; (11)ESD protection exceeds 2000 V HBM per JESD22-A114, 200 V MM per; (12)JESD22-A115, and 1000 V CDM per JESD22-C101.
