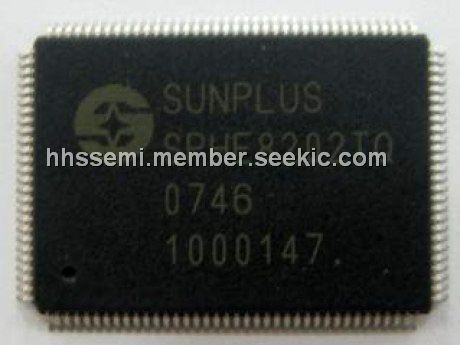

The SPHE8202TQ is a single-chip integrated DVD A/V decoder. It performs real-time decoding and playback of ISO/IEC 11172 MPEG1 and 13818 MPEG2 stream for multiple bitstream sources. The SPHE8202TQ is designed to maximize system performance with minimum cost. For typical DVD application it integrates DVD/CD servo controller, multi-channel multi-format TV-encoder and audio quality ADC, with high quality 5.1ch Audio, or low cost 2-ch AC3 system.
Parametrics
SPHE8202TQ absolute maximum ratings: (1)voltage on any pin relative to Vss: -0.3 to 5.5 V; (2)voltage on VDDIO supply relative to VSS: -0.3 to 3.6 V; (3)voltage on VDDK supply relative to VSS: -0.3 to 1.98 V; (4)storage temperature: -55 to +150℃; (5)soldering temp. (max.time): 240; (6)short circuit current: 50 mA.
Features
SPHE8202TQ features: (1)single chip integrated DVD servo and A/V decoder; (2)integrated DVD/CD servo controller: support 1x to 2x DVD format reading or support 1x to 16x CD format reading; (3)embedded 32-bit RISC processor without external host controller; (4)embedded audio processor supports multiple audio standards; (5)embedded I/O processor supports programmable interface control; (6)embedded TV encoder with multi-channel built-in high-speed video DAC supports various display standards; (7)built-in system PLL and audio PLL generate all clock sources required from single 27MHz input; (8)technology: advanced CMOS technology; 216pin LQFP package; 3v (I/O) and 1.8v (kernel) power supplies; 5v I/O tolerance; (9)low power: advanced low power design; selective standby mode; programmable low speed operation.

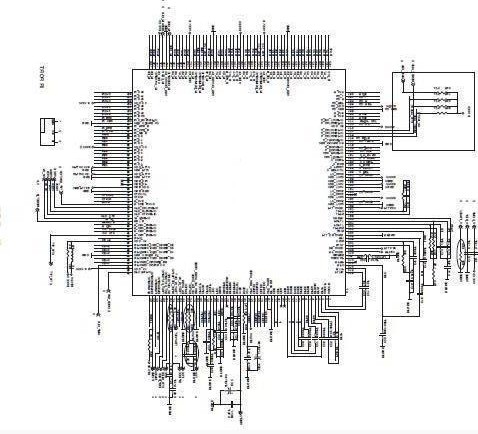

Diagrams
 |
