Product Summary

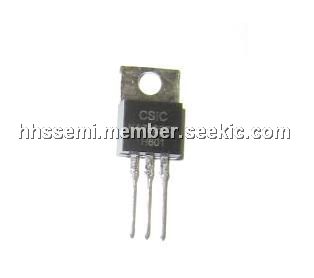

The LM7805 is a three terminal positive regulator. The LM7805 is available in the TO-220/D-PAK package and with several fixed output voltages, making them useful in a wide range of applications. Each type employs internal current limiting, thermal shut down and safe operating area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1A output current. Although designed primarily as fixed voltage regulators, the LM7805 can be used with external components to obtain adjustable voltages and currents.

Parametrics

LM7805 absolute maximum ratings: (1)Input Voltage (for VO= 5V to 18V), VI: 35V; (for VO = 24V), VI: 40V; (2)Thermal Resistance Junction-Cases (TO-220), RθJC: 5℃/W; (3)Thermal Resistance Junction-Air (TO-220), RθJA: 65℃/W; (4)Operating Temperature Range, TOPR: 0 to +125℃; (5)Storage Temperature Range, TSTG: -65 to +150℃.

Features

LM7805 features: (1)Output Current up to 1A; (2)Output Voltages of 5, 6, 8, 9, 10, 12, 15, 18, 24V; (3)Thermal Overload Protection; (4)Short Circuit Protection; (5)Output Transistor Safe Operating Area Protection.

Diagrams

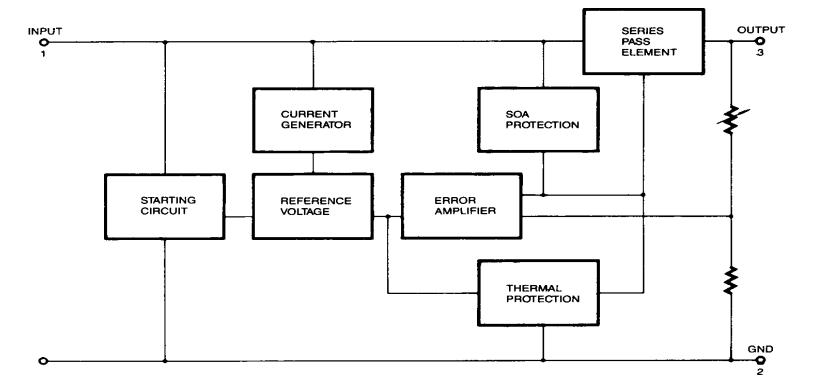

LM7805 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LM7805
LM7805
Other

Data Sheet
Negotiable
LM7805A
LM7805A
Other

Data Sheet
Negotiable
LM7805ACT
LM7805ACT
Fairchild Semiconductor
Linear Regulators - Standard 3A 2% OUTPUT TOL 3-TERMINAL
Data Sheet
0-1: $0.41
1-25: $0.33
25-100: $0.24
100-250: $0.21
LM7805CT
LM7805CT
Fairchild Semiconductor
Linear Regulators - Standard 1A Pos Vol Reg
Data Sheet
0-1: $0.41
1-25: $0.33
25-100: $0.24
100-250: $0.21
LM7805CT/NOPB
LM7805CT/NOPB
National Semiconductor (TI)
Linear Regulators - Standard
Data Sheet
0-1: $1.12
1-25: $0.91
25-100: $0.81
100-250: $0.72
LM7805CT_Q
LM7805CT_Q
Fairchild Semiconductor
Linear Regulators - Standard 1A Pos Voltage Reg
Data Sheet
Negotiable
LM7805ECT
LM7805ECT
Fairchild Semiconductor
Linear Regulators - Standard 3-Terminal 1A Positive
Data Sheet
Negotiable
