Product Summary
The PCA82C250T is an interface between a CAN protocol controller and the physical bus. The device provides differential transmit capability to the bus and differential receive capability to the CAN controller.
Parametrics
PCA82C250T absolute maximum ratings: (1)supply voltage: -0.3V to +9.0V; (2)DC voltage at pins 1, 4, 5 and 8: -0.3V to VCC + 0.3 V; (3)DC voltage at pins 6 and 7: -8.0V to +18.0V; (4)transient voltage at pins 6 and 7 see: -150V to +100V; (5)storage temperature: -55℃ +150℃; (6)ambient temperature: -40℃ +125℃; (7)virtual junction temperature: -40℃ +150℃.
Features
PCA82C250T features: (1)Fully compatible with the "ISO 11898" standard; (2)High speed (up to 1 MBd); (3)Bus lines protected against transients in an automotive environment; (4)Slope control to reduce Radio Frequency Interference (RFI); (5)Differential receiver with wide common-mode range for high immunity against ElectroMagnetic Interference (EMI); (6)Thermally protected; (7)Short-circuit proof to battery and ground; (8)Low-current Standby mode; (9)An unpowered node does not disturb the bus lines; (10)At least 110 nodes can be connected.

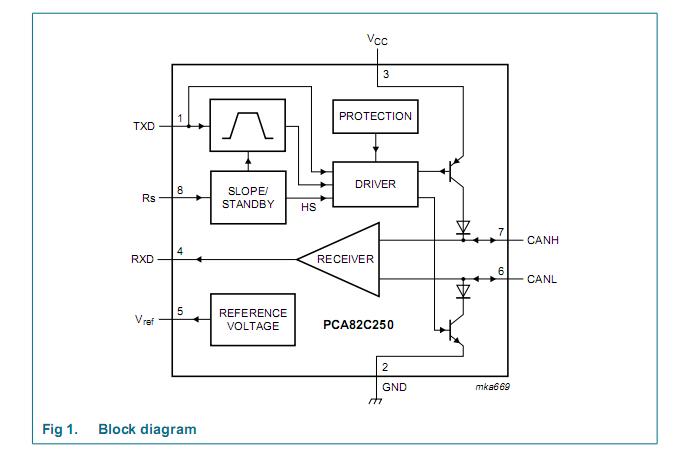

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PCA82C250T/N,112 |
|
IC CAN CNTRL INTERFACE SOT96-1 |
Data Sheet |
Negotiable |
|
||||||||||||
|
PCA82C250T/N,115 |
|
IC CAN CNTRL INTERFACE SOT96-1 |
Data Sheet |
Negotiable |
|
||||||||||||
 |
PCA82C250T/N4,112 |
NXP Semiconductors |
Network Controller & Processor ICs HI SPD CAN TRANSCVR |
Data Sheet |
Negotiable |
|
||||||||||||
|
PCA82C250T/N4,118 |
NXP Semiconductors |
Network Controller & Processor ICs HI-SPEED CAN XCVR |
Data Sheet |
Negotiable |
|
||||||||||||
|
PCA82C250T/N4,115 |
NXP Semiconductors |
Network Controller & Processor ICs HI SPD CAN TRANSCVR |
Data Sheet |
Negotiable |
|
||||||||||||
|
PCA82C250T/N,118 |
|
IC CAN CNTRL INTERFACE SOT96-1 |
Data Sheet |
Negotiable |
|
||||||||||||
|
PCA82C250T/YM,115 |
NXP Semiconductors |
Network Controller & Processor ICs CAN CONTROLLER INTERFACE |
Data Sheet |
|
|
||||||||||||
|
PCA82C250T/YM,112 |
NXP Semiconductors |
Network Controller & Processor ICs CAN CONTROLLER INTERFACE |
Data Sheet |
|
|
||||||||||||
