Product Summary
The 74LCX14MTCX is a low voltage hex inverter with 5V tolerant schmitt trigger inputs. The 74LCX14MTCX contains six inverter gates each with a Schmitt trigger input. The inverter is capable of transforming slowly changing input signals into sharply defined, jitter-free out-put signals. In addition, the inverter has a greater noise margin than conventional inverters. The 74LCX14MTCX has hysteresis between the positive-going and negative-going input thresholds (typically 1.0V) which is determined internally by transistor ratios and is essentially insensitive to temperature and supply voltage variations. The inputs tolerate voltages up to 7V allowing the interface of 5V, 3V and 2.5V systems.
Parametrics
74LCX14MTCX absolute maximum ratings: (1)Supply Voltage, VCC: -0.5 to +7.0 V; (2)DC Input Voltage, VI: -0.5 to +7.0 V; (3)DC Output Voltage, VO: -0.5 to VCC +0.5V; (4)DC Input Diode Current, IIK: -50 mA; (5)DC Output Diode Current, VO < GND, IOK: -50mA; VO > VCC, IOK: +50mA; (6)DC Output Source/Sink Current, IO: ±50 mA; (7)DC Supply Current per Supply Pin, ICC: ±100 mA; (8)DC Ground Current per Ground Pin, IGND: ±100 mA; (9)Storage Temperature, TSTG: -65 to +150℃.
Features
74LCX14MTCX features: (1)5V tolerant inputs; (2)2.3V–3.6V VCCspecifications provided; (3)6.5 ns tPDmax (VCC = 3.3V), 10 PA ICCmax; (4)Power down high impedance inputs and outputs; (5)r24 mA output drive (VCC = 3.0V); (6)Implements patented noise/EMI reduction circuitry; (7)Latch-up performance exceeds JEDEC 78 conditions; (8)ESD performance: Machine model > 200V; Human model > 2000V; (9)Leadless Pb-Free DQFN package.

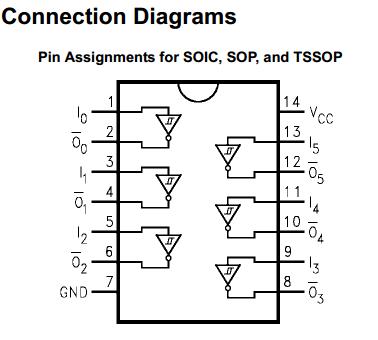

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 74LCX14MTCX |
Fairchild Semiconductor |
Inverters Hex Inverter |
Data Sheet |
|
|
||||||||||||
 |
74LCX14MTCX_NL |
Fairchild Semiconductor |
Inverters FINISHED GOOD |
Data Sheet |
Negotiable |
|
||||||||||||
