TC9257

Product Summary

The TC9257 is a phase-locked loop (PLL) LSI for digital tuning systems (DTS) with built-in two-modulus prescalers. All functions are controlled through three serial bus lines. The TC9257 is used to configure high-performance digital tuning systems.

Parametrics

TC9257 absolute maximum ratings: (1)Supply voltage, VDD: 0.3 to 6.0 V; (2)Input voltage, VIN: -0.3 to VDD +0.3 V; (3)N-ch open-drain OFF withstanding voltage, VOFF: 13 V; (4)Power dissipation, PD: 300 (200) mW; (5)Operating temperature, Topr: -40 to 85℃; (6)Storage temperature, Tstg: -65 to 150℃.

Features

TC9257 features: (1)Suitable for use in digital tuning systems in high-fi tuners and car stereos; (2)Built-in prescalers operate at an input frequency ranging from 30 to 150 MHz during FMINinput (with two-modulus prescaler) and at 0.5 to 40 MHz during AMINinput (with two-modulus prescaler or direct dividing); (3)16-bit programmable counter, dual parallel output phase comparator, crystal oscillator and reference counter; (4)3.6 MHz, 4.5 MHz, 7.2 MHz or 10.8 MHz crystal oscillators can be used; (5)15 possible reference frequencies (when using 4.5 MHz crystal): ref. = 0.5 k, 1 k, 2.5 k, 3 k, 3.125 k, 3.90625 k, 5 k, 6.25 k, 7.8125 k, 9 k, 10 k, 12.5 k, 25 k, 50 k and 100 kHz; (6)Built-in 20-bit general-purpose counter for such uses as measuring intermediate frequencies (IFIN1 and IFIN2) and low-frequency pilot signal cycles (SCIN). (No cycle measurement function is available on the TC9256APG and TC9256AFG.); (7)High-precision (±0.55 to ±7.15 μs) PLL phase error detection; (8)Numerous general-purpose I/O pins for such uses as peripheral circuit control; (9)Four N-channel open-drain output ports (OFF withstanding voltage: 12 V) for such uses as control signal output; (10)Standby mode function (turns off FM, AM and IF amps) to save current consumption; (11)All functions controlled through three serial bus lines; (12)CMOS structure with operating power supply range of VDD = 5.0 ± 0.5 V; (13)20-pin DIP (TC9257APG), 20-pin SOP (TC9257AFG) packages.

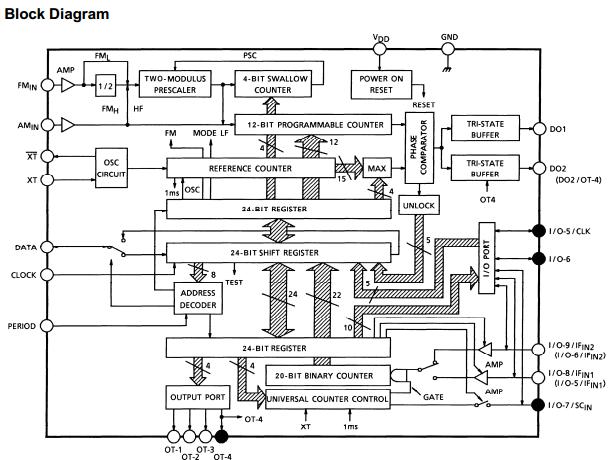

Diagrams
