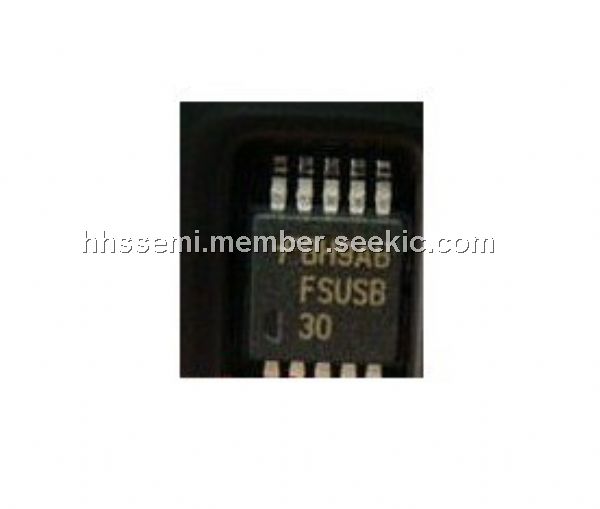

FSUSB30MUX

FSUSB30MUX, two-port, high-speed USB 2.0 switch, TSSOP-10, 5.5V, 50mA, Fairchild Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.01~0.01 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.01~0.01

PartNumber:: FSUSB30MUX

Brand:: Fairchild Semiconductor - Fairchild | Pack: TSSOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Andy's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-06-03

From Other Seller

Part Number:FSUSB30MUX
US $0.01 - 0.01
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

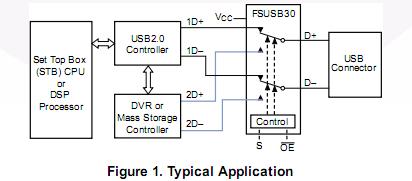

The FSUSB30MUX is a low-power, two-port, high-speed USB 2.0 switch. Configured as a double-pole double-throw(DPDT) switch, it is optimized for switching between two high-speed (480Mbps) sources or a Hi-Speed and Full-Speed (12Mbps) source. The FSUSB30MUX is compatible with the requirements of USB2.0 and features an extremely low on capacitance (CON) of 3.7pF. The applications of the FFSUSB30MUX are Cell phone, PDA, Digital Camera, and Notebook LCD Monitor, TV, and Set-top Box.

Parametrics

FSUSB30MUX absolute maximum ratings: (1)Supply Voltage: -0.5V to +5.5V; (2)DC Input Voltage: -0.5V to VCC; (3)DC Switch Voltage: 0.5V to VCC; (4)DC Input Diode Current: -50mA; (5)DC Output Current: 50mA; (6)Storage Temperature: -65 to +150℃; (7)Human Body Model: 8kV.

Features

FSUSB30MUX features: (1)Low On Capacitance: 3.7pF (Typical); (2)Low On Resistance: 6.5Ω (Typical); (3)Low Power Consumption: 1μA (Maximum), 10μA Maximum ICCT over an Expanded Control Voltage Range (VIN = 2.6V, VCC = 4.3V); (4)Wide -3dB Bandwidth, >720MHz; (5)8KV ESD Protection; (6)Power-Off Protection when VCC = 0V; D+/D- Pins can Tolerate up to 5.5V; (7)Packaged in:10-lead MicroPak (1.6 x 2.1mm).
