PCF8583P

PCF8583P, Clock and calendar, 8-DIP, 7V, 50mA, Texas Instruments

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.01~0.02 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.01~0.02

PartNumber:: PCF8583P

Brand:: Texas Instruments - TI | Pack: DIP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Andy's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-09

From Other Seller

Part Number:PCF8583P
US $0.01 - 0.02
SIL9185ACTU

US $2.30 - 5.00 / Piece
(0) Remove
AT45DB161B-TI

US $0.90 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

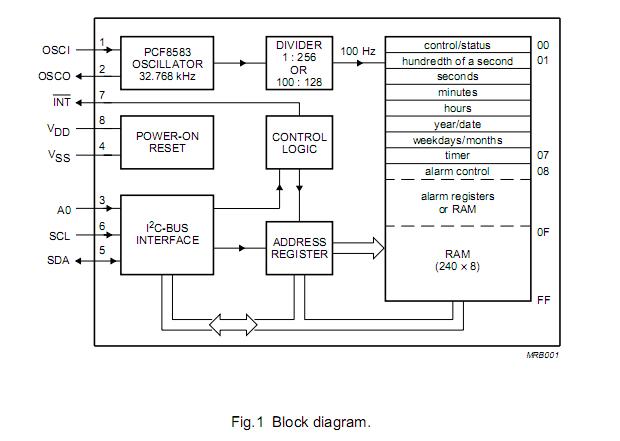

The PCF8583P is a clock/calendar circuit based on a 2048-bit static CMOS RAM. The PCF8583P is organized as 256 words by 8 bits. Addresses and data are transferred serially via the two-line bidirectional I2C-bus. The built-in word address register is incremented automatically after each written or read data byte. Address pin A0 is used for programming the hardware address, allowing the connection of two devices to the bus without additional hardware.

Parametrics

PCF8583P absolute maximum ratings: (1)supply voltage (pin 8): -0.8V to +7.0 V; (2)supply current (pin 8): 50 mA; (3)supply current (pin 4): 50 mA; (4)input voltage: -0.8V to VDD + 0.8 V; (5)DC input current: 10 mA; (6)DC output current: 10 mA; (7)total power dissipation per package: 300 mW; (8)power dissipation per output: 50 mW; (9)operating ambient temperature: -40℃ to +85℃; (10)storage temperature: -65℃ to +150℃.

Features

PCF8583P features: (1)I2C-bus interface operating supply voltage: 2.5 V to 6 V; (2)Clock operating supply voltage (0℃ to +70℃): 1.0 V to 6.0 V; (3)240 × 8-bit low-voltage RAM; (4)Data retention voltage: 1.0 V to 6 V; (5)Operating current (at fSCL = 0 Hz): max. 50 μA; (6)Clock function with four year calendar; (7)Universal timer with alarm and overflow indication; (8)24 or 12 hour format; (9)32.768 kHz or 50 Hz time base; (10)Serial input/output bus (I2C); (11)Automatic word address incrementing; (12)Programmable alarm, timer and interrupt function; (13)Slave address: READ: A1 or A3, WRITE: A0 or A2.
