MC74HC138ADR2G

MC74HC138ADR2G, 1-of-8 Decoder/ Demultiplexer, SOP, 7V, 20mA, ON Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.01~0.02 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.01~0.02

PartNumber:: MC74HC138ADR2G

Brand:: ON Semiconductor - ON | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Andy's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-06-08

From Other Seller

Part Number:MC74HC138ADR2G
US $0.01 - 0.02
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
M27C4001-10F1

US $2.00 - 3.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

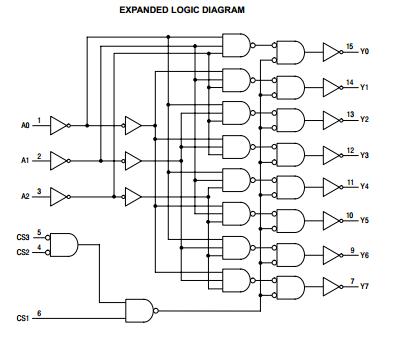

The MC74HC138ADR2G is a 1-of-8 Decoder/Demultiplexer. The device inputs are compatible with standard CMOS outputs; with pull up resistors, they are compatible with LSTTL outputs. The MC74HC138ADR2G decodes a three-bit Address to one-of-eight active low outputs. The MC74HC138ADR2G features three Chip Select inputs, two active-low and one active-high to facilitate the demultiplexing, cascading, and chip-selecting functions. The demultiplexing function is accomplished by using the Address inputs to select the desired device output; one of the Chip Selects is used as a data input while the other Chip Selects are held in their active states.

Parametrics

MC74HC138ADR2G absolute maximum ratings: (1)DQ Supply Voltage (Referenced to GND), VCC: -0.5 to +7.0V; (2)DQ Input Voltage (Referenced to GND), Vin: -0.5 to Vqq +0.5V; (3)DQ Output Voltage (Referenced to GND), Vout: -0.5 to Vqq +0.5V; (4)DQ Input Current, per Pin, Iin: ±20mA; (5)DQ Output Current, per Pin, Iout: ±25mA; (6)DQ Supply Current, Vqq and GND Pins, IQQ: ±50mA; (7)Power Dissipation in Still Air, Plastic DIP, PD: 750mW; SOIQ Package, PD: 500mW; TSSOP Package, PD: 450mW; (8)Storage Temperature, Tstg: -65 to +150℃; (9)Lead Temperature, 1 mm from Case for 10 Seconds (Plastic DIP, SOIQ or TSSOP Package), Tl: 260℃.

Features

MC74HC138ADR2G features: (1)Output Drive Capability: 10 LSTTL Loads; (2)Outputs Directly Interface to CMOS, NMOS and TTL; (3)Operating Voltage Range: 2.0 to 6.0 V; (4)Low Input Current: 1.0 μA; (5)High Noise Immunity Characteristic of CMOS Devices; (6)In Compliance with the Requirements Defined by JEDEC Standard No. 7A; (7)Chip Complexity: 100 FETs or 29 Equivalent Gates; (8)Pb-Free Packages are Available.
