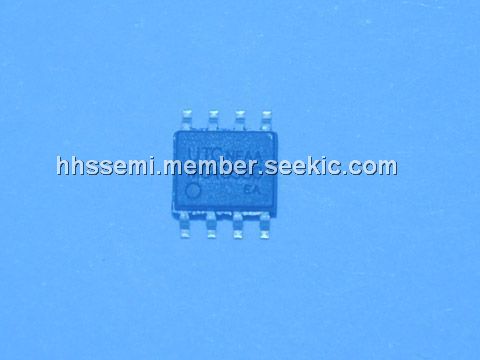

Product Summary

The MC4558 is a monolithic integrated circuit designed for dual operational amplifier.

Parametrics

MC4558 absolute maximum ratings: (1)Supply Voltage, VCC: ±22 V; (2)Differential Input Voltage, VI(DIFF): 30 V; (3)Input Voltage, VI: ±15 V; (4)Power Dissipation, PD: 400 mW; (5)Operating Temperature Range, TOPR: 0 to 70℃; (6)Storage Temperature Range, TSTG: -65 to 150℃.

Features

MC4558 features: (1)No frequency compensation required; (2)No latch up; (3)Large common mode and differential voltage range; (4)Parameter tracking over temperature range; (5)Gain and phase match between amplifiers; (6)Internally frequency compensated; (7)Low noise input transistors.

Diagrams

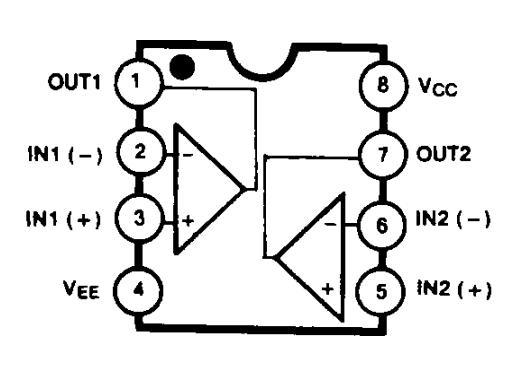

MC4558 block diagram
