Product Summary
The LM393M is a Low Power Low Offset Voltage Dual Comparator. The LM393M consists of two independent precision voltage comparators with an offset voltage specification as low as 2.0 mV max for two comparators which were de-signed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage. The LM393M also has a unique characteris-tic in that the input common-mode voltage range includes ground, even though operated from a single power supply voltage.
Parametrics
LM393M absolute maximum ratings: (1)Supply Voltage, V+: 36V; (2)Differential Input Voltage: 36V; (3)Input Voltage: -0.3V to +36V; (4)Input Current (VIN<-0.3V): 50 mA; (5)Power Dissipation, Molded DIP: 780 mW; Metal Can: 660 mW; Small Outline Package: 510 mW; micro SMD Pacakge: 568mW; (6)Output Short-Circuit to Ground: Continuous; (7)Operating Temperature Range: 0℃ to +70℃; (8)Storage Temperature Range: -65℃ to +150℃; (9)Lead Temperature (Soldering, 10 seconds): +260℃; (10)Soldering Information Dual-In-Line Package, Soldering (10 seconds): 260℃; Small Outline Package 215℃; (11)Vapor Phase (60 seconds), Infrared (15 seconds): 220℃.
Features
LM393M features: (1)Wide supply, Voltage range: 2.0V to 36V; Single or dual supplies: ±1.0V to±18V; (2)Very low supply current drain (0.4 mA)-independent of supply voltage; (3)Low input biasing current: 25 nA; (4)Low input offset current: ±5nA; (5)Maximum offset voltage: ±3mV; (6)Input common-mode voltage range includes ground; (7)Differential input voltage range equal to the power supply voltage; (8)Low output saturation voltage,: 250 mV at 4 mA; (9)Output voltage compatible with TTL, DTL, ECL, MOS and CMOS logic systems; (10)Available in the 8-Bump (12 mil) micro SMD package; (11)See AN-1112 for micro SMD considerations.

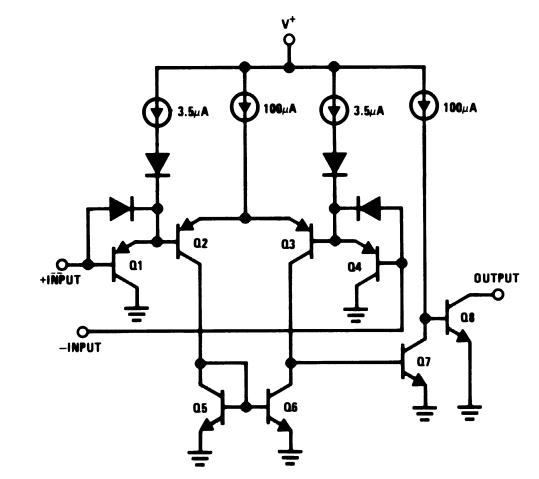

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM393M |
Fairchild Semiconductor |
Comparator ICs Dual Comparator |
Data Sheet |
|
|
||||||||||||
|
LM393M/NOPB |
National Semiconductor (TI) |
Comparator ICs LOW PWR LOW OFFSET VLTG DUAL COMPARATOR |
Data Sheet |
|
|
||||||||||||
|
LM393MX |
Fairchild Semiconductor |
Comparator ICs SOP-8Dual |
Data Sheet |
|
|
||||||||||||
|
LM393MX/NOPB |
National Semiconductor (TI) |
Comparator ICs LOW PWR LOW OFFSET VLTG DUAL COMPARATOR |
Data Sheet |
|
|
||||||||||||
|
LM393MX_Q |
Fairchild Semiconductor |
Comparator ICs SOP-8Dual |
Data Sheet |
Negotiable |
|
||||||||||||
