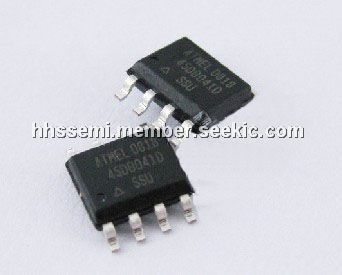

AT45DB041D-SSU

Product Summary

The AT45DB041D-SSU is a 2.5V or 2.7V, serial-interface Flash memory ideally suited for a wide variety of digital voice, image, program code and data-storage applications. The AT45DB041D-SSU supports RapidS serial interface for applications requiring very high speed operations. RapidS serial interface is SPI compatible for frequencies up to 66 MHz. Its 4,325,376 bits of memory are organized as 2,048 pages of 256 bytes or 264 bytes each. In addition to the main memory, the AT45DB041D-SSU also contains two SRAM buffers of 256/264 bytes each. The buffers allow the receiving of data while a page in the main Memory is being reprogrammed, as well as writing a continuous data stream. EEPROM emulation (bit or byte alterability) is easily handled with a self-contained three step read-modify-write operation. Unlike conventional Flash memories that are accessed randomly with multiple address lines and a parallel interface, the DataFlash uses a RapidS serial interface to sequentially access its data.

Parametrics

AT45DB041D-SSU absolute maximum ratings: (1)Temperature under Bias: -55℃ to +125℃; (2)Storage Temperature: -65℃to +150℃; (3)All Input Voltages (including NC Pins) with Respect to Ground: -0.6V to +6.25V; (4)All Output Voltages with Respect to Ground: -0.6V to VCC + 0.6V.

Features

AT45DB041D-SSU features: (1)Single 2.5V or 2.7V to 3.6V Supply; (2)RapidS?Serial Interface: 66 MHz Maximum Clock Frequency; (3)User Configurable Page Size; (4)Page Program Operation; (5)Flexible Erase Options; (6)Two SRAM Data Buffers (256/264 Bytes); (7)Continuous Read Capability through Entire Array; (8)Low-power Dissipation; (9)Hardware and Software Data Protection Features; (10)ector Lockdown for Secure Code and Data Storage; (11)Security: 128-byte Security Register; (12)JEDEC Standard Manufacturer and Device ID Read; (13)100,000 Program/Erase Cycles Per Page Minimum; (14)Data Retention ?20 Years; (15)Industrial Temperature Range; (16)Green (Pb/Halide-free/RoHS Compliant) Packaging Options.

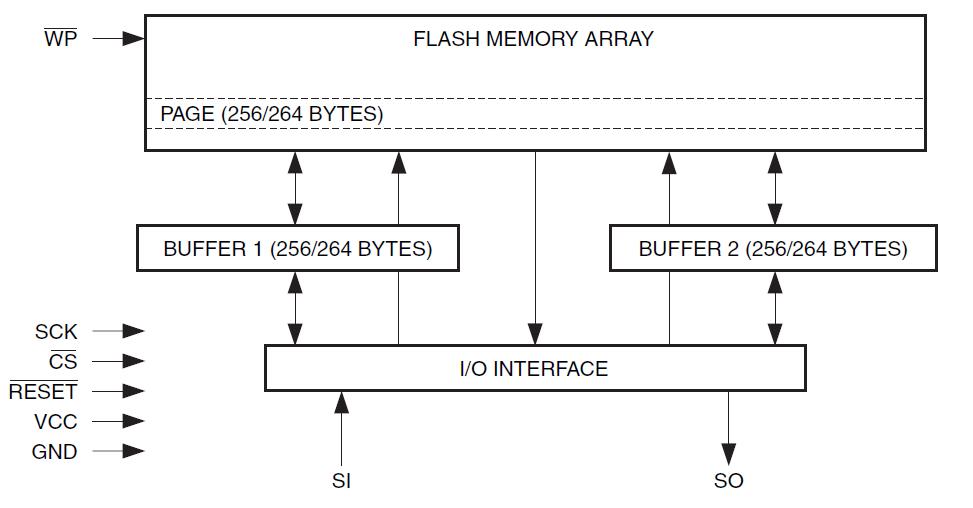

Diagrams
