Product Summary
The 78M09 is a three-terminal positive regulator. It is available in TO-220, TO-220FP, DPAK and IPAK packages and with several fixed output voltages, making it useful in a wide range of applications. The 78M09 can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type employs internal current limiting, thermal shutdown and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 0.5 A output current. Although designed primarily as fixed voltage regulators. The 78M09 can be used with external components to obtain adjustable voltage and currents.
Parametrics
78M09 absolute maximum ratings: (1)Input Voltage, VIN: VOUT=5 to 18V: 35V; VOUT=24V: 40V; (2)Output Current, IOUT: 0.5 A; (3)Power Dissipation, PD: Internally Limited W; (4)Operating Junction, Temperature Range TOPR: 0 to +125℃; (5)Storage Temperature Range, TSTG: -65 to +150℃.
Features
78M09 features: (1)Output current up to 0.5A; (2)Fixed output voltage of 5V, 6V, 8V, 9V, 12V, 15V ,18V and 24V available; (3)Thermal overload shutdown protection; (4)Short circuit current limiting; (5)Output transistor SOA protection.

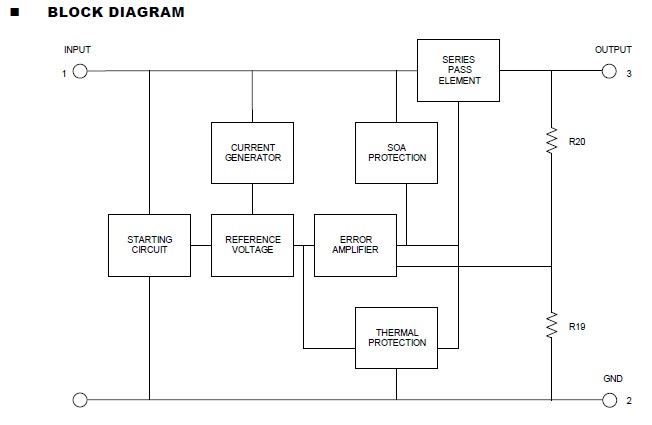

Diagrams
