Product Summary
The 78M05 is a three-terminal positive regulator. It is available in TO-220, TO-220FP, DPAK and IPAK packages and with several fixed output voltages, making it useful in a wide range of applications. The 78M05 can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type employs internal current limiting, thermal shutdown and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 0.5 A output current. Although designed primarily as fixed voltage regulators, The 78M05 can be used with external components to obtain adjustable voltage and currents.
Parametrics
78M05 absolute maximum ratings: (1)Input voltage, VIN: 35V; (2)Power disspation, Ta= 25℃, PD: 1W; Tc= 25℃, PD: 10W; (3)Operating temperature, Topr: -30 to +75℃; (4)Storage temperature, Tstg: -55 to +155℃; (5)Junction temperature, TJ: 150℃; (6)Thermal resistance, Rth(j-c): 12.5℃/W; Rth(j-a): 125℃/W..
Features
78M05 features: (1)Output current to 0.5 A; (2)Output voltages of 5; 6; 8; 9; 12; 15; 24 V; (3)Thermal overload protection; (4)Short circuit protection; (5)Output transition SOA protection

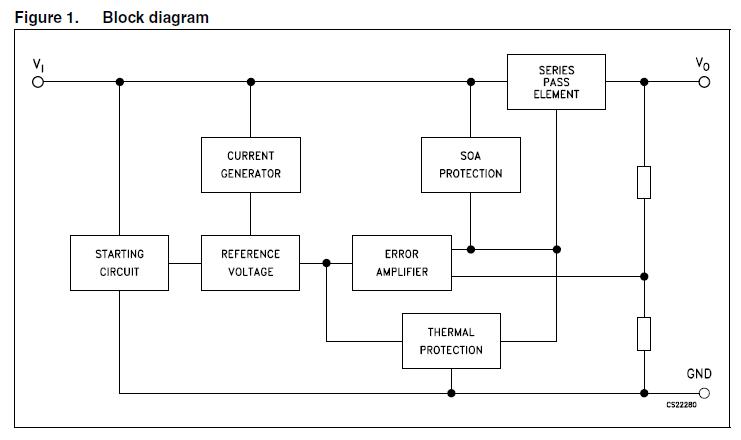

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 78M05S |
|
SWITCH DIP EXT RCKR SEAL 2POS TH |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
78M05S |
|
SWITCH DIP EXT RCKR SEAL 2POS TH |
Data Sheet |
Negotiable |
|
||||
|
78M06S |
|
SWITCH DIP EXT RCKR SEALED 3POS |
Data Sheet |
Negotiable |
|
||||
|
78M07S |
|
SWITCH DIP EXT RCKR SEALED 4POS |
Data Sheet |
Negotiable |
|
||||
|
78M08S |
|
SWITCH DIP EXT RCKR SEALED 5POS |
Data Sheet |
Negotiable |
|
||||
|
78M09S |
|
SWITCH DIP EXT RCKR SEALED 6POS |
Data Sheet |
Negotiable |
|
||||
