Product Summary

The P89V51RD2FN is an 8-bit microcontroller with 16/32/64 kB flash and 1024 B of data RAM. A key feature of the P89V51RD2FN is its X2 mode option. The design engineer can choose to run the application with the conventional 80C51 clock rate (12 clocks per machine cycle) or select the X2 mode (six clocks per machine cycle) to achieve twice the throughput at the same clock frequency. Another way to benefit from this feature is to keep the same performance by reducing the clock frequency by half, thus dramatically reducing the EMI.

Parametrics

P89V51RD2FN absolute maximum ratings: (1)bias ambient temperature, Tamb(bias): -55 to +125℃; (2)storage temperature, Tstg: -65 to +150℃; (3)input voltage, on EA pin to VSS, VI: -0.5 to +14 V; (4)voltage on any other pin, except VSS; with respect to VDD, Vn: -0.5 to VDD +0.5 V; (5)LOW-level output current per input/output pin, pins P1.5, P1.6, P1.7, IOL(I/O): 20 mA; all other pins, IOL(I/O): 15 mA; (6)total power dissipation (per package), based on package heat; (7)transfer, not device power consumption, Ptot(pack): 1.5 W.

Features

P89V51RD2FN features: (1)80C51 CPU; (2)5 V operating voltage from 0 MHz to 40 MHz; (3)16/32/64 kB of on-chip flash user code memory with ISP and IAP; (4)Supports 12-clock (default) or 6-clock mode selection via software or ISP; (5)SPI and enhanced UART; (6)PCA with PWM and capture/compare functions; (7)Four 8-bit I/O ports with three high-current port 1 pins (16 mA each); (8)Three 16-bit timers/counters; (9)Programmable watchdog timer; (10)Eight interrupt sources with four priority levels; (11)Second DPTR register; (12)Low EMI mode (ALE inhibit); (13)TTL- and CMOS-compatible logic levels; (14)Brownout detection; (15)Low power modes, Power-down mode with external interrupt wake-up; Idle mode; (16)DIP40, PLCC44 and TQFP44 packages.

Diagrams

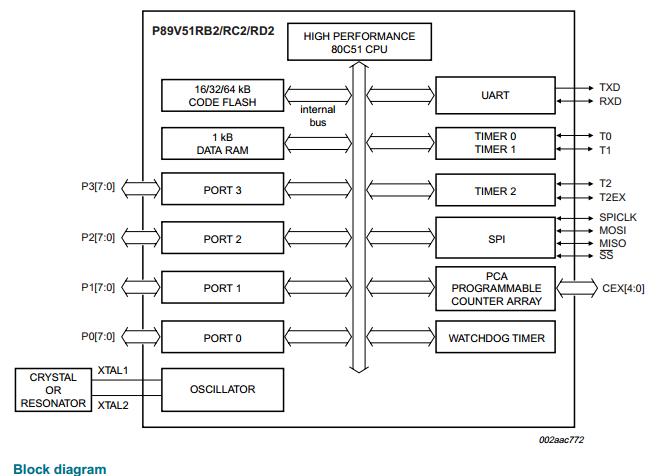

P89V51RD2FN block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
P89V51RD2FN
P89V51RD2FN
Other

Data Sheet
Negotiable
P89V51RD2FN,112
P89V51RD2FN,112
NXP Semiconductors
8-bit Microcontrollers (MCU) 80C51 64K FL / 1K RM
Data Sheet
0-1: $4.75
1-25: $4.31
25-100: $3.89
100-250: $3.58
