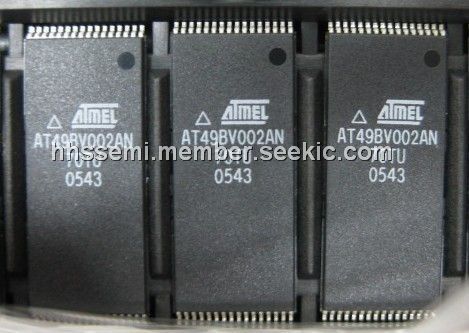

AT49BV002AN-70TU

AT49BV002AN-70TU, Single Battery-Voltage Flash Memory, TQFP, 6.25V, 3mA, ATMEL Corporation

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.01~0.02 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.01~0.02

PartNumber:: AT49BV002AN-70TU

Brand:: ATMEL Corporation - ATMEL | Pack: TQFP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Andy's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-06-11

From Other Seller

Part Number:AT49BV002AN-70TU
US $0.01 - 0.02
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AT49BV002AN-70TU is a 2.7-volt-only in-system reprogrammable Flash Memory. Its 2 megabits of memory is organized as 262,144 words by 8 bits. Manufactured with Atmel’s advanced nonvolatile CMOS technology, the device offers access times to 70 ns with power dissipation of just 54 mW over the industrial temperature range. When the device is deselected, the CMOS standby current is less than 50 μA. For the AT49BV002AN-70TU pin 1 for PLCC package and pin 9 for the TSOP package are no connect pins. To allow for simp le in -system reprogrammability, the AT49BV002AN-70TU does not require high input voltages for programming.

Parametrics

AT49BV002AN-70TU absolute maximum ratings: (1)Temperature Under Bias: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)All Input Voltages (including NC Pins) with Respect to Ground: -0.6V to +6.25V; (4)All Output Voltages with Respect to Ground: -0.6V to VCC+ 0.6V; (5)Voltage on OE with Respect to Ground: -0.6V to +13.5V.

Features

AT49BV002AN-70TU features: (1)Single Supply for Read and Write: 2.7 to 3.6V; (2)Fast Read Access Time-70 ns; (3)Internal Program Control and Timer; (4)Sector Architecture, One 16K Bytes Boot Block with Programming Lockout; Two 8K Bytes Parameter Blocks; Four Main Memory Blocks (One 32K Bytes, Three 64K Bytes); (5)Fast Erase Cycle Time – 4 Seconds; (6)Byte-by-Byte Programming-30 μs/Byte Typical; (7)Hardware Data Protection; (8)DATAPolling for End of Program Detection; (9)Low Power Dissipation, 15 mA Active Current; 50 μA CMOS Standby Current; (10)Typical 10,000 Write Cycles; (11)Green (Pb/Halide-free) Packaging Option.
